Description +
Details

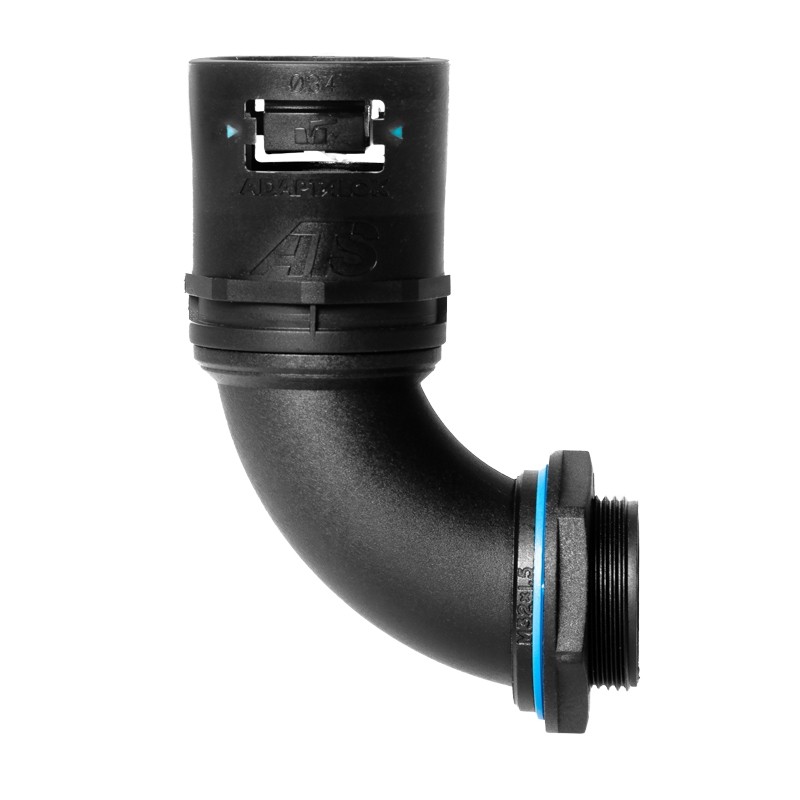

Discover the Harnessflex Fast-Fit Series Fittings: Reduce installation time and ensure maximum cable protection with our integrated one-piece design. When used with Harnessflex NC conduit, these fittings achieve the highest possible IP rating. Benefit from a failsafe design featuring integral seals and washers, minimizing installation errors and reducing future downtime costs.
Specifications +
Additional Information
| Additional Description | No |
|---|---|
| Overall Dimensions | 86.4mm (H) x 73mm (W) x with 44.2mm (Dia) sealed fitting |
| Width (mm) | 73 |
| Height (mm) | 86 |
| Length (mm) | No |
| Diameter (mm) | 44 |
| Weight (g) | 50g |
| Weight (Kg) | N/A |
| Brand Name | Harnessflex |
| Industry | Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers |
| GTIN/Barcode | 5020963816871 |
| Material | Nylon PA66, TPE seal |
| Colour | Black |
| Sold | Pack of 10 |
| Product Type | 90° Elbow |
| Series | Fast-Fit |
| Metric Thread | M32 x 1.5 |
| Features | Halogen-free |
| Conduit Size (NW) | NW29 |
| Conduit Size (NC) | NC32 |
| IP Rating | IP68 |
| EU RoHS Compliant | Yes |
| Conduit Size Outer Diameter (mm) | 34.5 |
| Max Operating Temperature (°c) | No |
| Operating Temperature Range (C) | No |
