TE/Deutsch DT Series Connector Interface Backshells

TE/Deutsch DT Series Connector Interface Backshells

Product Code:
CI-DT/10W
  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength – conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels – each junction indicates nominal conduit size to aid installation.
  • Nylon PA66
  • IP40 rated
  • Temperature Range: -40ºC to 120ºC.
  • Very high UV resistance.
  • Self extinguishing, low smoke toxicity & halogen free.

Confirmity

  • CE marked to Low Voltage Directive 2014/35/EU
  • RoHS Compliant to 2011/65/EU
  • Conforms with End of Life Vehicle Directive (ELV) EU200/53/EC


Product Information
Technical Data Sheet(s)
Enquire Today

TE/Deutsch DT Series Connector Interface Backshells

Product Code Product Name More Information Price Qty
CI08-DT2/10 Harnessflex Backshell Straight for 2 Way DT Connector and NC08 Conduit - Pack of 10 Learn more
$26.74 (Incl. GST) $24.31 (Excl. GST)
CI08-DT3/10 Harnessflex Backshell Straight for 3 Way DT Connector and NC08 Conduit - Pack of 10 Learn more
$35.65 (Incl. GST) $32.41 (Excl. GST)
CI08-DT4/10 Harnessflex Backshell Straight for 4 Way DT Connector and NC08 Conduit - Pack of 10 Learn more
$38.20 (Incl. GST) $34.73 (Excl. GST)
CI08-DT6/10 Harnessflex Backshell Straight for 6 Way DT Connector and NC08 Conduit - Pack of 10 Learn more
$44.57 (Incl. GST) $40.52 (Excl. GST)
CI12-DT2/10 Harnessflex Backshell Straight for 2 Way DT Connector and NC12 Conduit - Pack of 10 Learn more
$26.74 (Incl. GST) $24.31 (Excl. GST)
CI12-DT3/10 Harnessflex Backshell Straight for 3 Way DT Connector and NC12 Conduit - Pack of 10 Learn more
$35.65 (Incl. GST) $32.41 (Excl. GST)
CI12-DT4/10 Harnessflex Backshell Straight for 4 Way DT Connector and NC12 Conduit - Pack of 10 Learn more
$44.57 (Incl. GST) $40.52 (Excl. GST)
CI12-DT6/10 Harnessflex Backshell Straight for 6 Way DT Connector and NC12 Conduit - Pack of 10 Learn more
$48.40 (Incl. GST) $44.00 (Excl. GST)
CI12-DT8/10 Harnessflex Backshell Straight for 8 Way DT Connector and NC12 Conduit - Pack of 10 Learn more
$57.30 (Incl. GST) $52.09 (Excl. GST)
CI16-DT12/10 Harnessflex Backshell Straight for 12 Way DT Connector and NC16 Conduit - Pack of 10 Learn more
$70.04 (Incl. GST) $63.67 (Excl. GST)
CI08-90-DT2/10 Harnessflex Backshell 90° Elbow for 2 Way DT Connector and NC08 Conduit - Pack of 10 Learn more
$39.48 (Incl. GST) $35.89 (Excl. GST)
CI08-90-DT3/10 Harnessflex Backshell 90° Elbow for 3 Way DT Connector and NC08 Conduit - Pack of 10 Learn more
$48.40 (Incl. GST) $44.00 (Excl. GST)
CI08-90-DT4/10 Harnessflex Backshell 90° Elbow for 4 Way DT Connector and NC08 Conduit - Pack of 10 Learn more
$56.03 (Incl. GST) $50.94 (Excl. GST)
CI08-90-DT6/10 Harnessflex Backshell 90° Elbow for 6 Way DT Connector and NC08 Conduit - Pack of 10 Learn more
$62.39 (Incl. GST) $56.72 (Excl. GST)
CI12-90-DT2/10 Harnessflex Backshell 90° Elbow for 2 Way DT Connector and NC12 Conduit - Pack of 10 Learn more
$39.48 (Incl. GST) $35.89 (Excl. GST)
CI12-90-DT3/10 Harnessflex Backshell 90° Elbow for 3 Way DT Connector and NC12 Conduit - Pack of 10 Learn more
$48.40 (Incl. GST) $44.00 (Excl. GST)
CI12-90-DT4/10 Harnessflex Backshell 90° Elbow for 4 Way DT Connector and NC12 Conduit - Pack of 10 Learn more
$56.03 (Incl. GST) $50.94 (Excl. GST)
CI12-90-DT6/10 Harnessflex Backshell 90° Elbow for 6 Way DT Connector and NC12 Conduit - Pack of 10 Learn more
$62.39 (Incl. GST) $56.72 (Excl. GST)
CI12-90-DT8/10 Harnessflex Backshell 90° Elbow for 8 Way DT Connector and NC12 Conduit - Pack of 10 Learn more
$66.22 (Incl. GST) $60.20 (Excl. GST)
CI12-90-DT12/10 Harnessflex Backshell 90° Elbow for 12 Way DT Connector and NC12 Conduit - Pack of 10 Learn more
$82.76 (Incl. GST) $75.24 (Excl. GST)
CI16-90-DT8/10 Harnessflex Backshell 90° Elbow for 8 Way DT Connector and NC12 Conduit - Pack of 10 Learn more
$70.04 (Incl. GST) $63.67 (Excl. GST)
CI16-90-DT12/10 Harnessflex Backshell 90° Elbow for 12 Way DT Connector and NC16 Conduit - Pack of 10 Learn more
$82.76 (Incl. GST) $75.24 (Excl. GST)
Currently Out of Stock.

Please try again later or Contact Us for alternatives.


Description +

Details

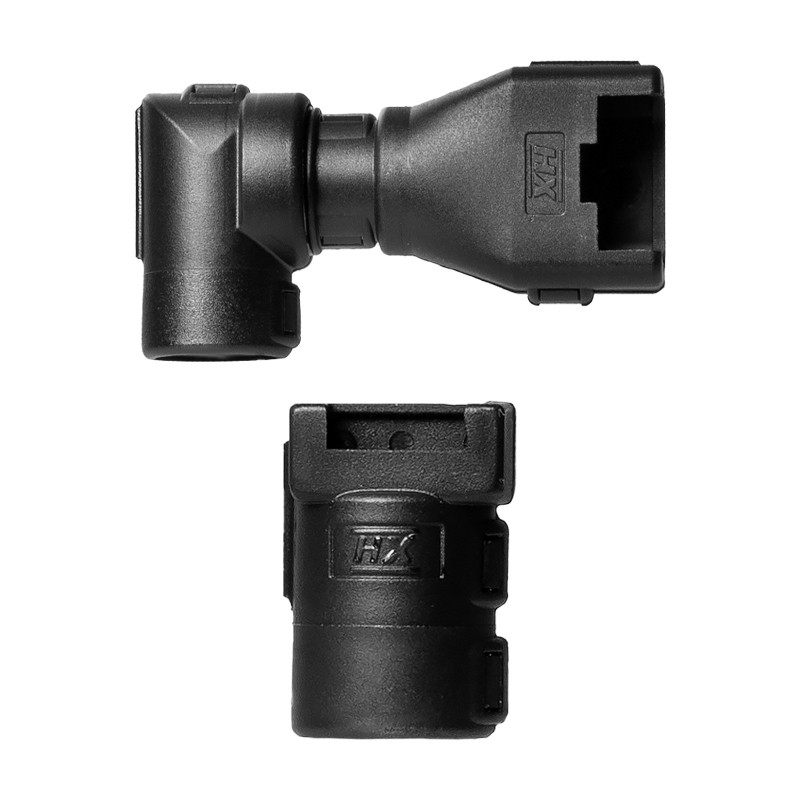

Straight and 90° elbow connector interfaces (backshells) providing high integrity connections between Deutsch DT connectors and Harnessflex conduit systems. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing. These are also compatible with Amphenol AT connectors.

Specifications +

Additional Information

Additional Description

Confirmity

  • CE marked to Low Voltage Directive 2014/35/EU
  • RoHS Compliant to 2011/65/EU
  • Conforms with End of Life Vehicle Directive (ELV) EU200/53/EC
Overall Dimensions No
Width (mm) No
Height (mm) No
Length (mm) No
Diameter (mm) No
Weight (g) No
Weight (Kg) N/A
Brand Name Harnessflex
Industry Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers
GTIN/Barcode No
Material Nylon PA66
Colour Black
Sold No
Product Type No
Series TE/Deutsch DT Series
Metric Thread No
Features Halogen-free, high UV resistance, self extinguishing and low smoke toxicity.
Conduit Size (NW) No
Conduit Size (NC) No
IP Rating IP40
EU RoHS Compliant Yes
Conduit Size Outer Diameter (mm) No
Max Operating Temperature (°c) 120°C
Operating Temperature Range (C) -40°C to 120°C
