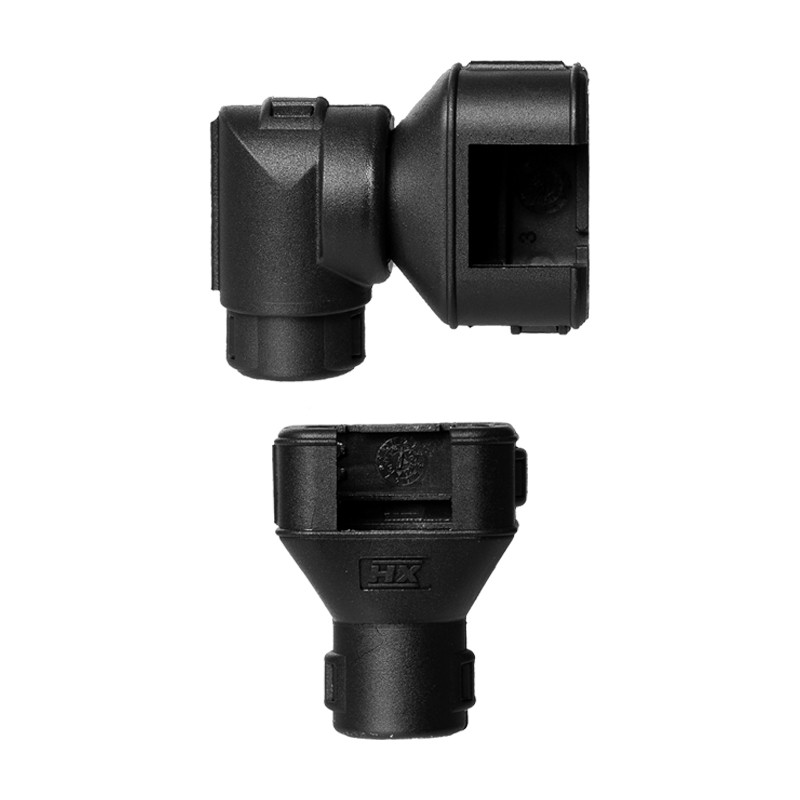

AMPSEAL 16 Connector Interface Backshells

AMPSEAL 16 Connector Interface Backshells

Product Code:
CI-AT/10W
  • Provides complete cable protection right up to the connector.
  • High pull-off strength.
  • Provides cable strain relief.
  • Nylon PA66
  • IP40 rated
  • Temperature Range: -40°C to 120°C.
  • Very high UV resistance.
  • Self extinguishing, low smoke toxicity & halogen free.

Confirmity

  • CE marked to Low Voltage Directive 2014/35/EU
  • RoHS Compliant to 2011/65/EU
  • Conforms with End of Life Vehicle Directive (ELV) EU200/53/EC


Product Information
Technical Data Sheet(s)
Enquire Today

AMPSEAL 16 Connector Interface Backshells

Product Code Product Name More Information Price Qty
CI08-AT2PL/10 Harnessflex Backshell Straight, 2 Way AMPSEAL 16, Standard Plug, NC08 Conduit - Pack of 10 Learn more
$62.37 (Incl. GST) $56.70 (Excl. GST)
CI08-AT3PL/10 Harnessflex Backshell Straight, 3 Way AMPSEAL 16, Standard Plug, NC08 Conduit - Pack of 10 Learn more
$66.99 (Incl. GST) $60.90 (Excl. GST)
CI08-AT4PL/10 Harnessflex Backshell Straight, 4 Way AMPSEAL 16, Standard Plug, NC08 Conduit - Pack of 10 Learn more
$69.30 (Incl. GST) $63.00 (Excl. GST)
CI12-AT4PL/10 Harnessflex Backshell Straight, 4 Way AMPSEAL 16, Standard Plug, NC12 Conduit - Pack of 10 Learn more
$69.30 (Incl. GST) $63.00 (Excl. GST)
CI12-AT6PL/10 Harnessflex Backshell Straight, 6 Way AMPSEAL 16, Standard Plug, NC12 Conduit - Pack of 10 Learn more
$73.92 (Incl. GST) $67.20 (Excl. GST)
CI12-AT8PL/10 Harnessflex Backshell Straight, 8 Way AMPSEAL 16, Standard Plug, NC12 Conduit - Pack of 10 Learn more
$78.54 (Incl. GST) $71.40 (Excl. GST)
CI12-AT12PL/10 Harnessflex Backshell Straight, 12 Way AMPSEAL 16, Standard Plug, NC12 Conduit - Pack of 10 Learn more
$78.54 (Incl. GST) $71.40 (Excl. GST)
CI16-AT8PL/10 Harnessflex Backshell Straight 8 Way AMPSEAL 16, Standard Plug, NC16 Conduit - Pack of 10 Learn more
$90.09 (Incl. GST) $81.90 (Excl. GST)
CI16-AT12PL/10 Harnessflex Backshell Straight, 12 Way AMPSEAL 16, Standard Plug, NC16 Conduit - Pack of 10 Learn more
$92.40 (Incl. GST) $84.00 (Excl. GST)
CI08-90-AT2PL/10 Harnessflex Backshell 90° Elbow, 2 Way AMPSEAL 16, Standard Plug, NC08 Conduit - Pack of 10 Learn more
$64.68 (Incl. GST) $58.80 (Excl. GST)
CI08-90-AT3PL/10 Harnessflex Backshell 90° Elbow, 3 Way AMPSEAL 16, Standard Plug, NC08 Conduit - Pack of 10 Learn more
$64.68 (Incl. GST) $58.80 (Excl. GST)
CI08-90-AT4PL/10 Harnessflex Backshell 90° Elbow, 4 Way AMPSEAL 16, Standard Plug, NC08 Conduit - Pack of 10 Learn more
$71.61 (Incl. GST) $65.10 (Excl. GST)
CI12-90-AT2PL/10 Harnessflex Backshell 90° Elbow, 2 Way AMPSEAL 16, Standard Plug, NC12 Conduit - Pack of 10 Learn more
$92.40 (Incl. GST) $84.00 (Excl. GST)
CI12-90-AT3PL/10 Harnessflex Backshell 90° Elbow, 3 Way AMPSEAL 16, Standard Plug, NC12 Conduit - Pack of 10 Learn more
$62.37 (Incl. GST) $56.70 (Excl. GST)
CI12-90-AT4PL/10 Harnessflex Backshell 90° Elbow, 4 Way AMPSEAL 16, Standard Plug, NC12 Conduit - Pack of 10 Learn more
$77.39 (Incl. GST) $70.35 (Excl. GST)
CI08-90-AT2LP/10 Harnessflex Backshell 90° Elbow, 2 Way AMPSEAL 16, Low Profile Plug, NC08 Conduit - Pack of 10 Learn more
$83.16 (Incl. GST) $75.60 (Excl. GST)
CI08-90-AT2LR/10 Harnessflex Backshell 90° Elbow, 2 Way AMPSEAL 16, Low Profile Receptacle, NC08 Conduit - Pack of 10 Learn more
$121.28 (Incl. GST) $110.25 (Excl. GST)
CI08-90-AT3LP/10 Harnessflex Backshell 90° Elbow, 3 Way AMPSEAL 16, Low Profile Plug, NC08 Conduit - Pack of 10 Learn more
$62.37 (Incl. GST) $56.70 (Excl. GST)
CI08-90-AT3LR/10 Harnessflex Backshell 90° Elbow, 3 Way AMPSEAL 16, Low Profile Receptacle, NC08 Conduit - Pack of 10 Learn more
$68.15 (Incl. GST) $61.95 (Excl. GST)
CI08-90-AT4LR/10 Harnessflex Backshell 90° Elbow, 4 Way AMPSEAL 16, Low Profile Receptacle, NC08 Conduit - Pack of 10 Learn more
$71.61 (Incl. GST) $65.10 (Excl. GST)
CI08-90-AT6LP/10 Harnessflex Backshell 90° Elbow, 6 Way AMPSEAL 16, Low Profile Plug, NC08 Conduit - Pack of 10 Learn more
$92.40 (Incl. GST) $84.00 (Excl. GST)
CI08-90-AT6LR/10 Harnessflex Backshell 90° Elbow, 6 Way AMPSEAL 16, Low Profile Receptacle, NC08 Conduit - Pack of 10 Learn more
$87.78 (Incl. GST) $79.80 (Excl. GST)
CI12-90-AT2LP/10 Harnessflex Backshell 90° Elbow, 2 Way AMPSEAL 16, Low Profile Plug, NC12 Conduit - Pack of 10 Learn more
$83.16 (Incl. GST) $75.60 (Excl. GST)
CI12-90-AT2LR/10 Harnessflex Backshell 90° Elbow, 2 Way AMPSEAL 16, Low Profile Receptacle, NC12 Conduit - Pack of 10 Learn more
$92.40 (Incl. GST) $84.00 (Excl. GST)
CI12-90-AT3LP/10 Harnessflex Backshell 90° Elbow, 3 Way AMPSEAL 16, Low Profile Plug, NC12 Conduit - Pack of 10 Learn more
$62.37 (Incl. GST) $56.70 (Excl. GST)
CI12-90-AT3LR/10 Harnessflex Backshell 90° Elbow, 3 Way AMPSEAL 16, Low Profile Receptacle, NC12 Conduit - Pack of 10 Learn more
$80.85 (Incl. GST) $73.50 (Excl. GST)
CI12-90-AT4LP/10 Harnessflex Backshell 90° Elbow, 4 Way AMPSEAL 16, Low Profile Plug, NC12 Conduit - Pack of 10 Learn more
$86.63 (Incl. GST) $78.75 (Excl. GST)
CI12-90-AT4LR/10 Harnessflex Backshell 90° Elbow, 4 Way AMPSEAL 16, Low Profile Receptacle, NC12 Conduit - Pack of 10 Learn more
$84.32 (Incl. GST) $76.65 (Excl. GST)
CI12-90-AT6LP/10 Harnessflex Backshell 90° Elbow, 6 Way AMPSEAL 16, Low Profile Plug, NC12 Conduit - Pack of 10 Learn more
$92.40 (Incl. GST) $84.00 (Excl. GST)
CI16-90-AT4LP/10 Harnessflex Backshell 90° Elbow, 4 Way AMPSEAL 16, Low Profile Plug, NC16 Conduit - Pack of 10 Learn more
$86.63 (Incl. GST) $78.75 (Excl. GST)
CI16-90-AT4LR/10 Harnessflex Backshell 90° Elbow, 4 Way AMPSEAL 16, Low Profile Receptacle, NC16 Conduit - Pack of 10 Learn more
$84.32 (Incl. GST) $76.65 (Excl. GST)
CI16-90-AT6LR/10 Harnessflex Backshell 90° Elbow, 6 Way AMPSEAL 16, Low Profile Receptacle, NC16 Conduit - Pack of 10 Learn more
$99.33 (Incl. GST) $90.30 (Excl. GST)
Currently Out of Stock.

Please try again later or Contact Us for alternatives.


Description +

Details

A range of straight and 90° elbow interfaces offering a compact and high integrity connection between Ampseal automotive connectors and Harnessflex conduit systems. These interfaces provide complete cable protection right up to the connector. They also provide strain relief and protection from high pressure washing, helping to maintain the sealing integrity of the connector. The 90° elbow allows the conduit to swivel 360° around the connector housing. These fittings are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore.

Specifications +

Additional Information

Additional Description

Confirmity

  • CE marked to Low Voltage Directive 2014/35/EU
  • RoHS Compliant to 2011/65/EU
  • Conforms with End of Life Vehicle Directive (ELV) EU200/53/EC
Overall Dimensions No
Width (mm) No
Height (mm) No
Length (mm) No
Diameter (mm) No
Weight (g) No
Weight (Kg) N/A
Brand Name Harnessflex
Industry Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers
GTIN/Barcode No
Material No
Colour Black
Sold No
Product Type No
Series AMPSEAL 16
Metric Thread No
Features Halogen-free, high UV resistance, self extinguishing and low smoke toxicity.
Conduit Size (NW) No
Conduit Size (NC) No
IP Rating IP40
EU RoHS Compliant Yes
Conduit Size Outer Diameter (mm) No
Max Operating Temperature (°c) 120°C
Operating Temperature Range (C) -40°C to 120°C
