Description +
Details

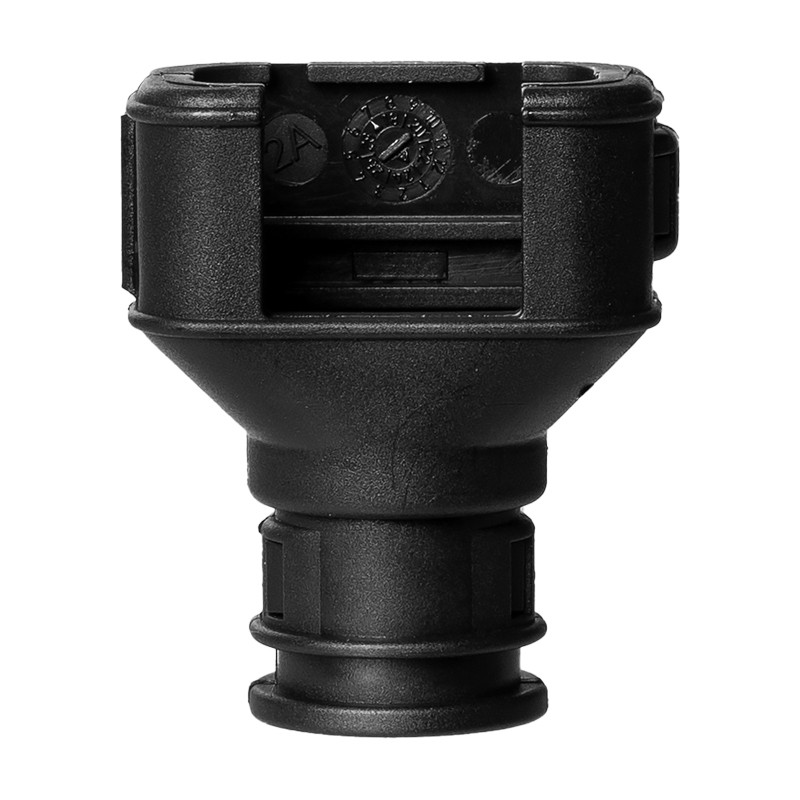

Discover our range of straight interfaces that offer a high-integrity connection between Ampseal 16 automotive connectors and Harnessflex conduit systems. Our interfaces provide complete cable protection up to the connector, ensuring strain relief and protection from high-pressure washing. This helps maintain the sealing integrity of the connector, making it a reliable choice for your automotive needs
Specifications +
Additional Information
| Additional Description | No |
|---|---|
| Overall Dimensions | 34mm (H) x 28mm (W) x 17mm (Dia) |
| Width (mm) | 28 |
| Height (mm) | 34 |
| Length (mm) | No |
| Diameter (mm) | 17 |
| Weight (g) | 3.8g |
| Weight (Kg) | N/A |
| Brand Name | Harnessflex |
| Industry | Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers |
| GTIN/Barcode | 9351868011099 |
| Material | Nylon PA66 |
| Colour | Black |
| Sold | Pack of 10 |
| Product Type | Straight |
| Series | AMPSEAL 16 |
| Metric Thread | No |
| Features | Halogen-free, high UV resistance, self extinguishing and low smoke toxicity. |
| Conduit Size (NW) | NW7.5 |
| Conduit Size (NC) | NC08 |
| IP Rating | IP40 |
| EU RoHS Compliant | Yes |
| Conduit Size Outer Diameter (mm) | 10 |
| Max Operating Temperature (°c) | No |
| Operating Temperature Range (C) | No |
