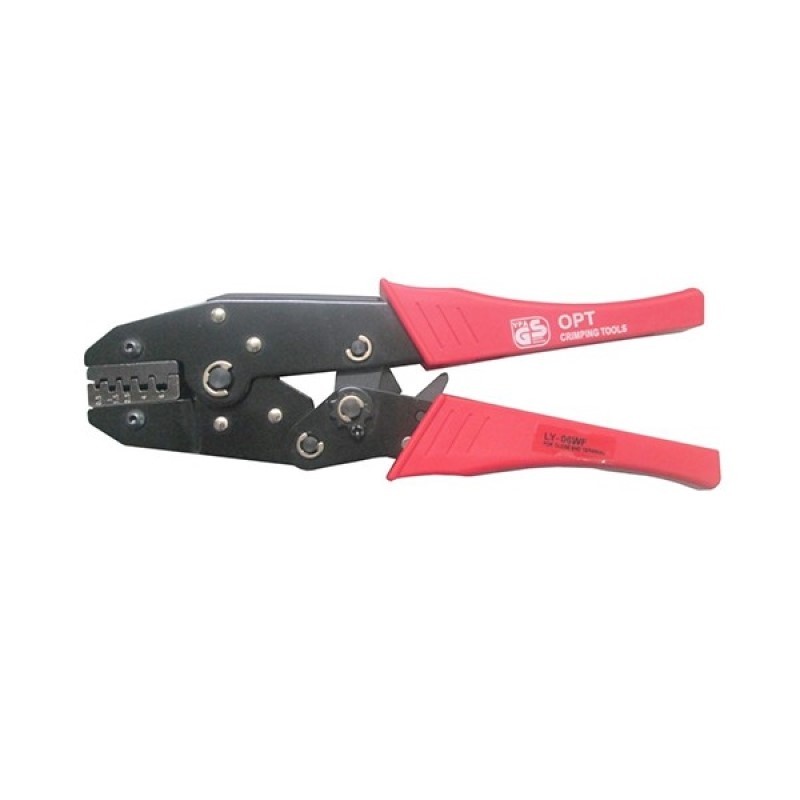

OPT Ratchet Crimping Tool, Bootlace Ferrule 0.5 - 6mm²

OPT Ratchet Crimping Tool, Bootlace Ferrule 0.5 - 6mm²

Product Code:
LY-06WF
  • Unique precision crimping head
  • Accommodates 7 different terminal sizes - 0.5-0.75, 1-1.5, 2.5, 4 and 6mm²
  • Super compact and light weight
  • Features tension adjustment for a secure grip on various cable sizes
  • Length: 230mm
  • Made In Taiwan
$77.00 (Incl. GST) $70.00 (Excl. GST)
Currently Out of Stock.

Please try again later or Contact Us for alternatives.


Description +

Details

The LY-06WF bootlace ferrule crimping tool is designed to crimp bootlace and cord end sleeve terminals with a range of 0.5mm² to 6mm². It's a ratchet-style crimper with a tension adjustment and release mechanism.


  • Suitable for bootlace ferrules, end sleeves
  • Crimp range 0.5 - 6mm²
  • Measures 230mm (L) x 70mm (W) x 20mm (H)
  • Weighs 600g

Specifications +

Additional Information

Colour Black/Red
Unit of Measure Each
GTIN/Barcode 9351868011778
Crimp Range 0.5 - 6.0mm²
Material Alloy Steel/Plastic
Suited For For bootlace ferrules, cord end sleeves
Type Ratchet
Tool Type Crimp Tool
