Description +
Details

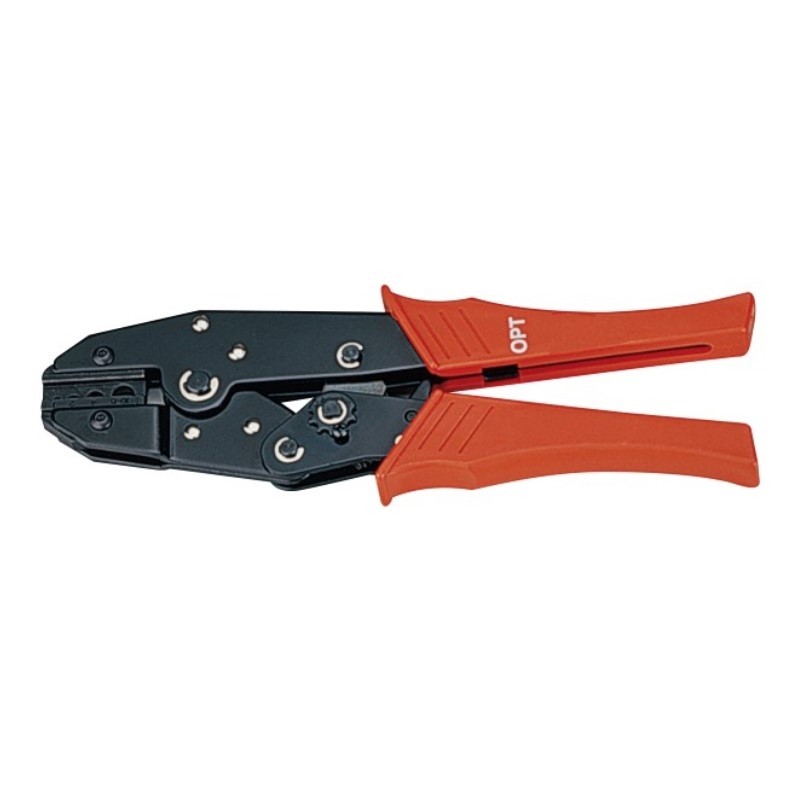

The LY-10 Ratchet Crimping Tool is designed to crimp Copper lugs and links onto stranded Copper wire up to 10mm². Featuring four crimping cavities, 1.5mm², 2.5mm², 4-6mm² and 10mm² this crimper minimises the tools required for completing jobs. The adjustable compound action design puts more crimping power into each squeeze, reducing the effort required for cable crimping.
- Suitable for crimping uninsulated copper lugs with wire within the 0.5 - 10mm² range
- Measures 230mm (L) x 76mm (W) x 20mm (H)
- Weighs 600g
Specifications +
Additional Information
| Colour | Black/Red |
|---|---|
| Unit of Measure | Each |
| GTIN/Barcode | 9351868011709 |
| Crimp Range | 0.5 - 10mm² |
| Material | Alloy Steel/Plastic |
| Suited For | Copper Lugs & Links |
| Type | Ratchet |
| Tool Type | Crimp Tool |
