Description +
Details

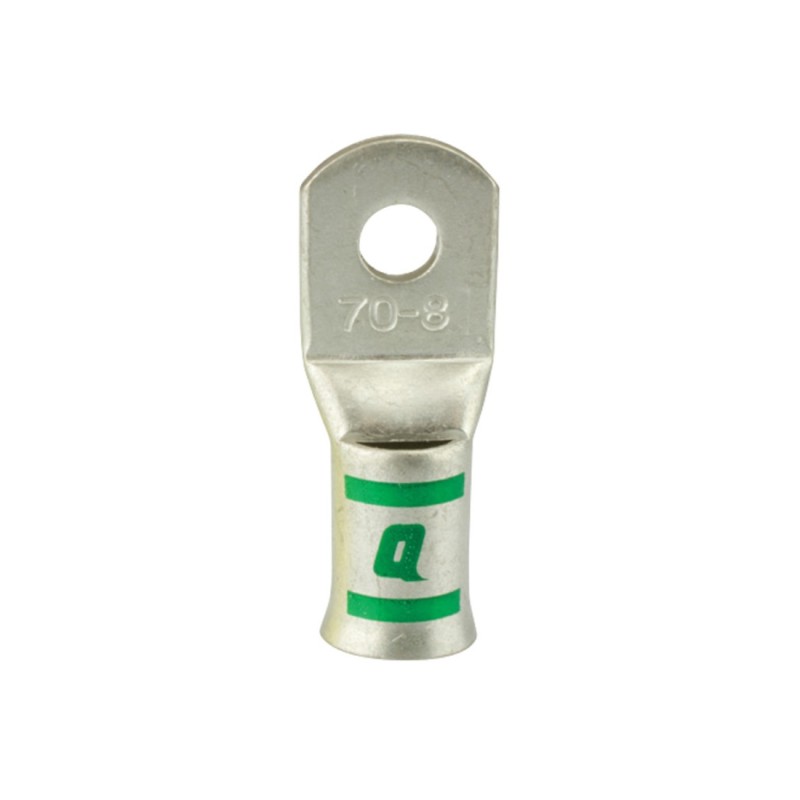

- Manufactured from fully annealed, 99.95% pure high conductivity copper and are electro-tin plated for superior corrosion resistance
- Also include crimp lines for improved accuracy during installation
- Features:
- 99.95% pure electrolytic copper
- Electrical conductivity 99.7% IACS
- Oxygen content 30ppm max
- Fully annealed
- 5-10 Micron, 99.9% pure tin plating
- Operating temperature range of -55 to 155°C
- Conformant standards: AS/NZ 4325 - Part 1
- Lug sizes 10 to 630mm² are supplied bell mouth as standard
- All other sizes are straight barrel type
- Printed crimp line marks for added guidance
- Inspection window to assist with cable insertion
Specifications +
Additional Information
| Unit of Measure | Pack of 10 |
|---|---|
| Wire Size | 50mm² |
| Wire Size Awg | Not Applicable |
| Material | Copper |
| Barrel Length | 22mm |
| Barrel Type | Bell Mouth |
| Inner Dimension mm | 9.5mm |
| Length | 46mm |
| Palm Thickness | 3.2mm |
| Palm Width | 18mm |
| Stud Size | 6mm |
| Palm Length | 18mm |
| Battery Cable Gauge | 0 B&S |
