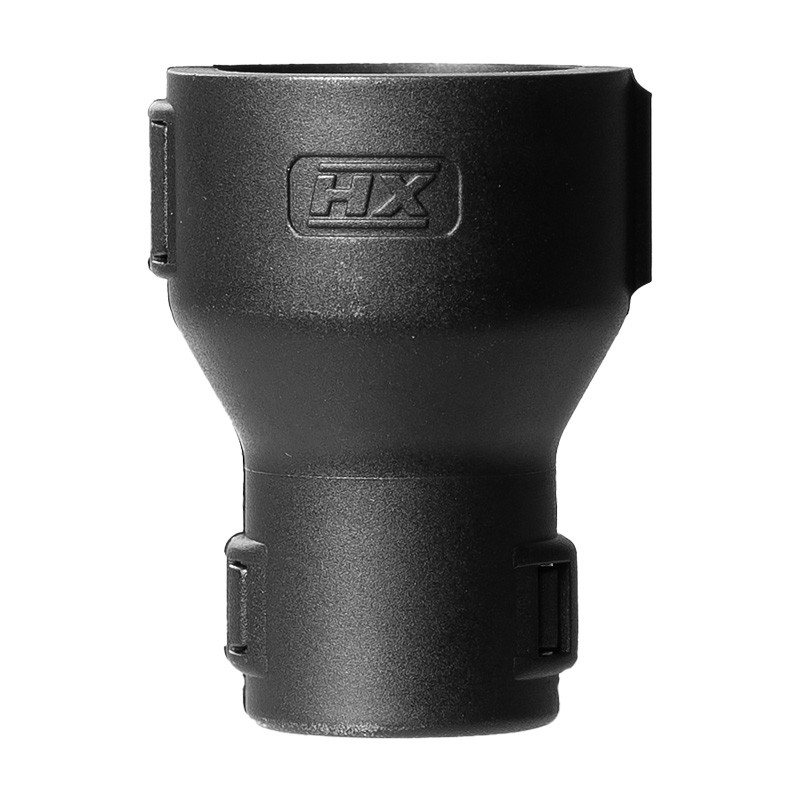

Harnessflex Heavy Duty Backshell for HDSCS Type B Connector and NC12 Conduit - Pack of 10
Harnessflex Heavy Duty Backshell for HDSCS Type B Connector and NC12 Conduit - Pack of 10
Harnessflex Heavy Duty Backshell for HDSCS Type B Connector and NC12 Conduit - Pack of 10
Harnessflex Heavy Duty Backshell for HDSCS Type B Connector and NC12 Conduit - Pack of 10
Harnessflex Heavy Duty Backshell for HDSCS Type B Connector and NC12 Conduit - Pack of 10
Harnessflex Heavy Duty Backshell for HDSCS Type B Connector and NC12 Conduit - Pack of 10

Harnessflex Heavy Duty Backshell for HDSCS Type B Connector and NC12 Conduit - Pack of 10

Product Code:
CI12-HDSCS-B/10
  • Provides a continuous connection between harness and connector.
  • Strain relief.
  • Abrasion and vibration protection.
  • Protects from full force of jet washing.
  • Nylon PA66
  • IP40 rated
  • Temperature Range: -40°C to 140°C.
  • Very high UV resistance.
$33.00 (Incl. GST) $30.00 (Excl. GST)
Currently Out of Stock.

Please try again later or Contact Us for alternatives.


Description +

Details

The Harnessflex Heavy Duty Series provides reliable cable protection for TE HDSCS and Aptiv CTCS XP Type B & E connectors, ensuring uninterrupted vehicle operation even in the harshest environments. The series features a heavy-duty plug and socket backshell interface that offers safe and secure cable protection.

Specifications +

Additional Information

Additional Description No
Overall Dimensions 24mm (H) x 24mm (W) x 34mm (Dia)
Width (mm) 24
Height (mm) 24
Length (mm) No
Diameter (mm) 34
Weight (g) 3.3g
Brand Name Harnessflex
Industry Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers
GTIN/Barcode 9351868011624
Material Nylon PA66
Colour Black
Sold Pack of 10
Product Type Straight
Series TE HDSCS
Metric Thread No
Features Halogen-free, high UV resistance, self extinguishing and low smoke toxicity.
Conduit Size (NW) NW10
Conduit Size (NC) NC12
IP Rating IP40
EU RoHS Compliant Yes
Conduit Size Outer Diameter (mm) 13.1
Max Operating Temperature (°c) No
Operating Temperature Range (C) No
