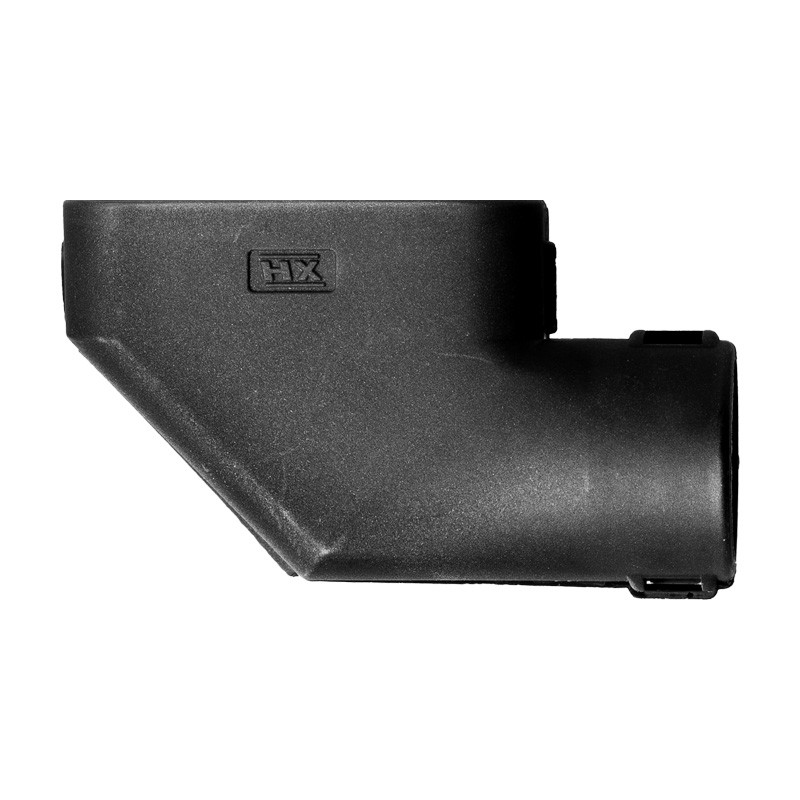

The Harnessflex Heavy Duty Series provides reliable cable protection for TE HDSCS and Aptiv CTCS XP Type B & E connectors, ensuring uninterrupted vehicle operation even in the harshest environments. The series features a heavy-duty plug and socket backshell interface that offers safe and secure cable protection.
Specifications +
Additional Information
Additional Description | No |
---|---|
Overall Dimensions | 68mm (H) x 49mm (W) x 40mm (Dia) |
Width (mm) | 49 |
Height (mm) | 68 |
Length (mm) | No |
Diameter (mm) | 40 |
Weight (g) | 10g |
Brand Name | Harnessflex |
Industry | Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers |
GTIN/Barcode | 9351868011648 |
Material | Nylon PA66 |
Colour | Black |
Sold | Pack of 10 |
Product Type | 90° Elbow |
Series | TE HDSCS |
Metric Thread | No |
Features | Halogen-free, high UV resistance, self extinguishing and low smoke toxicity. |
Conduit Size (NW) | NW17 |
Conduit Size (NC) | NC20 |
IP Rating | IP40 |
EU RoHS Compliant | Yes |
Conduit Size Outer Diameter (mm) | 21.2 |
Max Operating Temperature (°c) | No |
Operating Temperature Range (C) | No |
