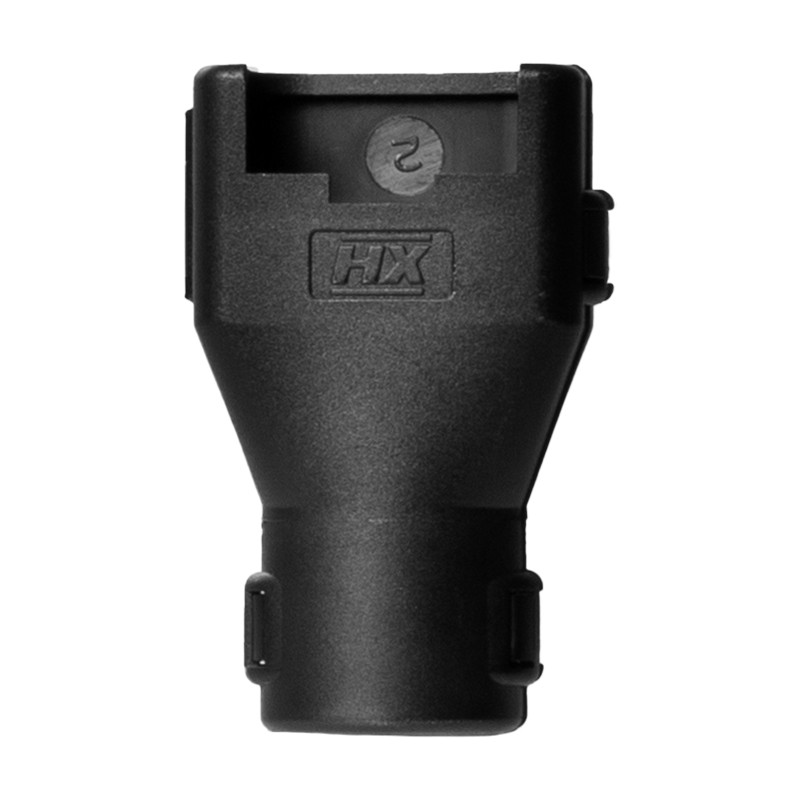

Harnessflex Backshell Straight for 4 Way DT Connector and NC12 Conduit - Pack of 10
Harnessflex Backshell Straight for 4 Way DT Connector and NC12 Conduit - Pack of 10
Harnessflex Backshell Straight for 4 Way DT Connector and NC12 Conduit - Pack of 10
Harnessflex Backshell Straight for 4 Way DT Connector and NC12 Conduit - Pack of 10
Harnessflex Backshell Straight for 4 Way DT Connector and NC12 Conduit - Pack of 10
Harnessflex Backshell Straight for 4 Way DT Connector and NC12 Conduit - Pack of 10

Harnessflex Backshell Straight for 4 Way DT Connector and NC12 Conduit - Pack of 10

Product Code:
CI12-DT4/10
  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength ‚Äì conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels ‚Äì each junction indicates nominal conduit size to aid installation.
  • Nylon PA66
  • IP40 rated
  • Temperature Range: -40¬∫C to 120¬∫C.
  • Very high UV resistance.
  • Self extinguishing, low smoke toxicity & halogen free.
$38.50 (Incl. GST) $35.00 (Excl. GST)
Currently Out of Stock.

Please try again later or Contact Us for alternatives.


Description +

Details

Deutsch DT connectors and Harnessflex conduit systems can be connected using straight interfaces that provide high-integrity connections. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. They are also compatible with Amphenol and Molex connector versions

Specifications +

Additional Information

Additional Description No
Overall Dimensions 42mm (H) x 27mm (W) x 24mm (Dia)
Width (mm) 27
Height (mm) 42
Length (mm) No
Diameter (mm) 24
Weight (g) 3.7g
Brand Name Harnessflex
Industry Agricultural machinery, Buses & Coaches, Construction & Mining Equipment, Heavy duty and special purpose vehicles, Trucks & Trailers
GTIN/Barcode 9351868010924
Material Nylon PA66
Colour Black
Sold Pack of 10
Product Type Straight
Series TE/Deutsch DT Series
Metric Thread No
Features Halogen-free, high UV resistance, self extinguishing and low smoke toxicity.
Conduit Size (NW) NW10
Conduit Size (NC) NC12
IP Rating IP40
EU RoHS Compliant Yes
Conduit Size Outer Diameter (mm) 13.1
Max Operating Temperature (°c) No
Operating Temperature Range (C) No
